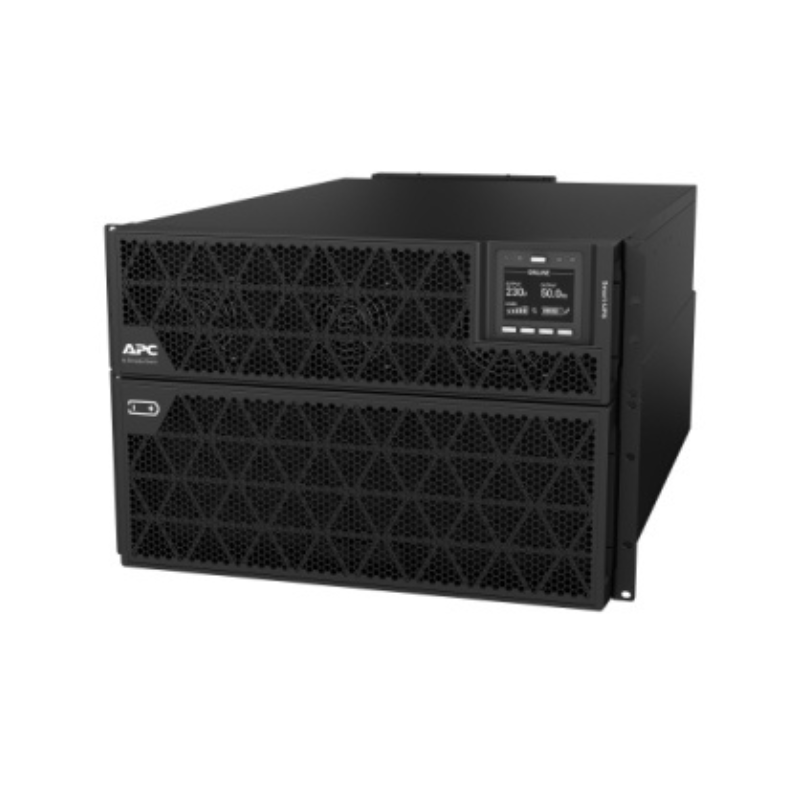

APC Smart-UPS RT 20kVA 230V International
Features ;
Input
- Network frequency ; 40…70 Hz auto-sensing
- Number of input connectors ; 1 hard wire 5 wire (3P + N + E)
- 1 hard wire 3-wire (1P + N + E)
- Input voltage limits ; 160…285 V
- 380 V 380…415 V
- Maximum input current ; 87 A
- Switching current capacity ; 125 A
- Input harmonic distortion ; Less than 5 % for full load
- Input current ; 87 A
- Load power factor ; From 0.9 leading to 1 lagging
Output
- Maximum configurable power in W ; 20000 W
- Harmonic distortion ; Less than 5 %
- Output frequency ; 50/60 Hz +/- 0.1 Hz sync to mains
- Crest factor ; 3 : 1
- UPS type ; Double conversion online
- Wave type ; Sine wave
- Output overload operation ; 60 seconds at 125% and 30 seconds at 150%
- Bypass type ; Built-in static bypass
- Efficiency ; 93 % (in battery operation)
- Full load runtime ; 00:03:30 20000 W
- Half load runtime ; 00:09:30 10000 W
- Maximum configurable power in VA ; 20000 VA
