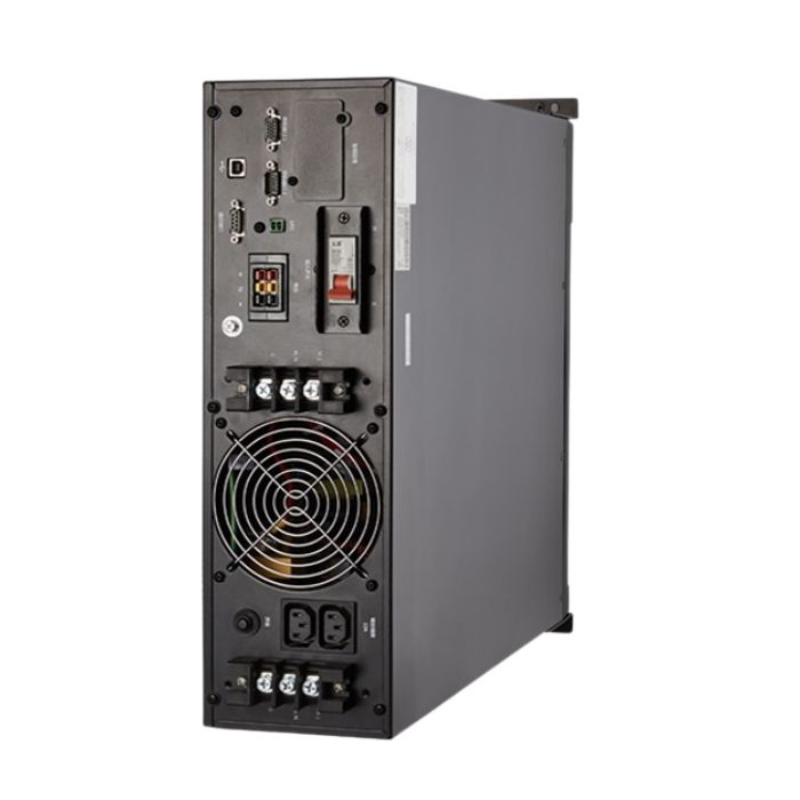

Rackmount KSTAR UPS 6000VA/5400w
Features ;
Capacity: 6000VA/5400Watts
Input ;
Nominal Voltage: 220/230/240Vac (L+N+PE)
Operating Voltage Range: 120Vac-276Vac
Operating Frequency Range: 50Hz45 to 55Hz60Hz54 to 66Hz
Power Factor: 0.99
Bypass Voltage Range:
Max.voltage: 220V+25% (Optional +10%,+15%,+20%), 230V+20%(Optional +10%,+15%), 240V+15% (Optional +10%), Min. voltage: -45% (Optional -20%,-30%)
ECO Range: Same as Bypass
Harmonic Distortion (THDi): 5%(100% non-linear load)
Output ;
Output Voltage: 220/230/240Vac
Power Factor: 0.9
Voltage Regulation: 1%
Frequency ;
Line Mode: 1%/2%/4%/5%/10% of the rated frequency (Optional)
Battery Mode: (50/600.1)Hz
Crest Factor: 3:1
Harmonic Distortion THDv: 2% with linear load, 5% with non-linear load
Waveform: Pure Sinewave
Transfer Time: Utility to Battery: 0ms, Utility to Bypass: 0ms
Efficiency: Up to 94%
Battery ;
Battery Voltage: Optional Voltage: 96/108/120Vdc
Typical Recharge Time: 6-8 hours (To 90% capacity)
Charging Current: Maximum current 10A
Protection ;
Overload Line Mode: Load125%: last 5min150%: last 1min150% 200ms turn to bypass mode
Overload Bypass Mode: 40A (Input breaker)
Short Circuit: Hold Whole System
Overheat ;
Line Mode: Switch to Bypass
Backup Mode: Shut down UPS immediately
Battery Low: Alarm and Switch off
