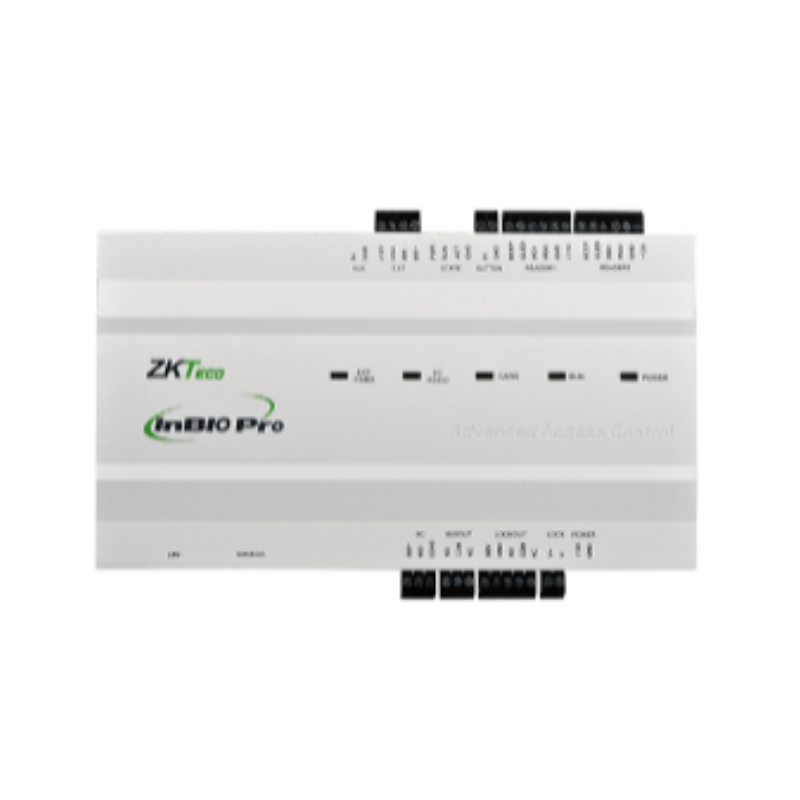

The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modification of network parameters directly and easily.
Features ;
• Number of doors controller: 4 Door
• Numbers of readers supported: 12 (8 RS-485 Reader, 4 26-bit wiegand reader)
• Types of readers supported: 26-bit Wiegand and RS485 FR Series Reader
• Number of Inputs: 12( 4 Exit Device, 4 Door Status, 4 AUX)
• Number of Outputs: 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
• Card holders Capacity: 30,000
• Fingerprint Capacity: 3,000
• Log Events Capacity: 100,000
• Communication: TCP/IP, RS-485 and WiFi optional
• CPU: 32 bit 400MHz CPU
• RAM: 32M
• Flash Memory: 128M
• Operating Temp: 0-45 °C
• Operating Humidity: 20% to 80%
